Difference between Capacitors and Inductors

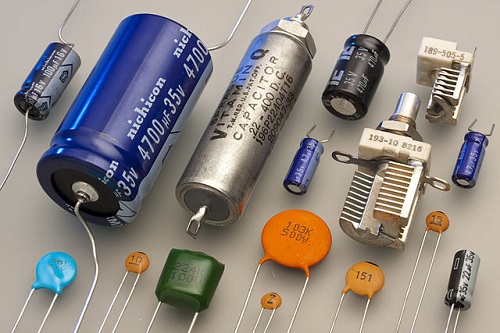

What are Capacitors?

Capacitors are electrical components, similar to resistors and inductors, that impede the current in a circuit. Unlike a resistor that dissipates current, however, a capacitor stores energy in order to preserve the voltage in the circuit. Capacitors use an electrical field to store energy.Difference between Capacitors and Inductors



What are Inductors?

Like capacitors, inductors are electrical components used in a circuit to impede changes in the current or filter out certain frequencies. An inductor stores energy in a magnetic field, which preserves current across the circuit.

Differences between Capacitors and Inductors

Difference between Capacitors and Inductors-1

  1. Physical Design of Capacitors vs. Inductors

Capacitors have two conducting plates that are typically separated by a dielectric material that serves as an insulator. In theory, an air gap can separate the plates, but this design is extremely inefficient due to energy loss. Common types of capacitors include:

  • Ceramic capacitors
  • Tantalum capacitors
  • Electrolytic capacitors

An inductor is simply a wire, nearly always coiled, with two terminals. Inductors can be coupled, can have special housing, and can have different core materials within the coil. The smallest inductors tend to be much larger than the smallest capacitors because the coiled wire takes up much more space than the thin layers of the capacitor’s plates. However, surface mount inductors have become much smaller to fit small devices like cell phones. Some typical types of inductors include:

  • Multilayer inductors
  • Coupled inductors
  • Molded inductors
  • RF inductors
  • Chokes
  • Surface mount inductors



  1. Type of Storage Field in Capacitors vs. Inductors

Capacitors store energy in an electric field.

Inductors store energy in a magnetic field.



  1. Voltage vs. Current

In a capacitor, energy is calculated in terms of voltage. The voltage is determined as the difference in potential energy between the two separated plates. A capacitor resists changes in voltage by storing energy in the electric field created by the plates and gap. As a current is applied to the circuit, charges accumulate on the plates of the capacitor. Therefore, voltage cannot change instantly across a capacitor.

  • A current cannot pass across the plates of a capacitor.

In an inductor, energy is calculated in terms of current. An inductor resists changes in current in the circuit. When a constant current is run through the inductor, a magnetic field is created. As a property of the magnetic field, when the current suddenly increases or decreases, the current within the magnetic field will change in the opposite direction. This resists, or impedes, the change in current across the circuit. The inductor inhibits the current from changing instantly.

  • A current can pass through the wire of an inductor, but it will create a magnetic field as it does so.



  1. AC and DC Currents

If an AC current is applied to a circuit with a capacitor and a resistor, voltage (or EMF) will lag behind the current (dependent on capacitance and frequency), because the capacitor is resisting changes in voltage. If a DC circuit is applied instead, the current will begin high and decay to 0. In this case, the charge on the capacitor accumulates as the current continues until the potential difference within the capacitor is too great of an opposing force for the current.

If an AC current is applied to a circuit with an inductor and a resistor, current will lag behind voltage (dependent on inductance and frequency), because the inductor is resisting changes in current. With a DC current applied, the current will start off low and increase to a steady state, as an inverse to the capacitor. This occurs because the magnetic field in the inductor is resisting the sudden change in current that occurs when the DC current turns on. When the current is shut off, the magnetic field will resist the change again.



  1. Frequencies of Capacitors and Inductors

Capacitors are best for conducting high-frequency signals. They can be used to block out low-frequency signals or noise. The size of the capacitor can change the range of frequencies that are filtered out, and different sizes of capacitors can be combined.

Inductors conduct best at low-level frequencies, and filter out high-frequency signals and oscillations. Inductors can be used in tandem with capacitors to restrict the range of frequencies in the circuit.



  1. Applications of Capacitors and Inductors

Because capacitors conduct well at high frequencies, they are commonly used in high-voltage power supplies, where they can filter out noise. Traditionally, they have been used in situations where very large capacitance and power levels have been needed, such as in radar. They are also used for electronics like radios that use oscillating signals, in which one plate of the capacitor can discharge and the other can charge instantly. Capacitors are also commonly placed next to microchips to block interference from DC signals; in this case, they are de-coupling capacitors.

Inductors are popular across a wide variety of modern electronics and appliances. TVs, radios, and spark plugs are all everyday uses for inductors. In situations where frequencies or resonance are important, inductors can be combined with capacitors and resistors to amplify or restrict the oscillations in the circuit. Traditional inductors are usually too large to be used with modern microchips, but surface mount inductors are being manufactured small enough for today’s electronics. Other inductor types have additional capabilities, like the use of coupled inductors in transformers.

Table of Differences between Capacitors and Inductors



Feature Capacitor Inductor
Storage Field Electric Field Magnetic Field
Resists Voltage or Current Voltage Current
Conducts a Current No Yes
AC Current Voltage Lags Current Lags
DC Current Current Decreases Over Time Current Increases Over Time
Best Frequency for Conduction High Frequencies Low Frequencies

Summary of Capacitors vs. Inductors

  • Capacitors and inductors are similar electrical components that impede the current in a circuit; unlike a resistor, they store the energy instead of dissipating it.
  • A capacitor stores energy in an electric field, while an inductor stores energy in a magnetic field.
  • Capacitors resist changes in voltage and current does not pass through them; inductors resist changes in current and conduct.
  • Capacitors work best at high frequencies and inductors work best at low frequencies; they can be combined to filter out unwanted signals or frequencies.
